Adastra RM120-WIFI 120W 100V Mixer Amplifier With WiFi, Internet Radio, USB & Bluetooth

by Adastra
SKU 953.234
Save 23% Save 23%
Original price £389.00 (inc. VAT)
Original price £389.00 (inc. VAT) - Original price £389.00 (inc. VAT)
Original price £389.00 (inc. VAT)
Current price £299.00 (inc. VAT)
£299.00 (inc. VAT) - £299.00 (inc. VAT)
Current price £299.00 (inc. VAT)
DETAILS

Adastra RM120-WIFI: 120W 100V Mixer Amplifier With WiFi, Internet Radio, USB & Bluetooth.

The Adastra RM120-WIFI is a versatile 5-channel 19" rack-mountable mixer-amplifier designed for commercial sound installations. It delivers 120W RMS to 100V line speakers or standard low-impedance speakers, making it ideal for offices, schools, retail environments, and public announcement systems.

Input options include an XLR microphone input with switchable phantom power, mic/line jacks, and RCA line inputs. A switchable ‘voiceover’ feature automatically reduces background music when a signal is detected via Mic 1, while rear panel 24V contacts can mute all channels except Mic 1 when triggered.

The RM120-WIFI also features a built-in audio player, supporting USB playback, Bluetooth® streaming, and WiFi or LAN network connectivity. Stream internet radio, playback services, or content from a local NAS drive with full control via the free WiiM Home app on Android or iOS devices. Outputs include four switchable 100V zones and a separate “always-on” output for priority alert speakers.

This all-in-one amplifier combines flexible audio inputs, multiple zone outputs, and modern network streaming capabilities, making it a powerful solution for both traditional PA and networked audio installations.

Adastra RM120-WIFI Key Features:

  • Power Output: 120W RMS
  • WiFi & Network Streaming: Stream internet radio or audio from LAN/WiFi via WiiM Home app
  • Audio Playback: USB player and Bluetooth 5.0 receiver
  • Inputs: 1 x XLR mic with switchable +20V phantom power, 2 x mic/line jacks, 2 x RCA line inputs
  • Outputs: 4 switchable 100V outputs + 1 unswitched output, optional 4–16 Ohm output
  • Voiceover Function: Automatically lowers background music when Mic 1 is active
  • Emergency Control: 24V contacts mute all except Mic 1
  • Equalisation Controls: Bass ±10dB, Treble ±10dB
  • Remote Control: Free WiiM Home app for iOS & Android

Read our blog post about the best amp for restaurants

SPECS & DOWNLOADS

Download the PDF User Manual HERE >

Adastra RM120-WIFI Mixer Amplifier Specifications:

  • Weight: 6.36kg
  • Fuse: T3.15A
  • Output power : rms: 120W
  • Power supply: 170-264Vac, 50Hz (IEC)
  • DC power: 24Vdc (screw terminals)
  • Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
  • Input sensitivity : mic 1 (balanced): -53dBV
  • Input impedance : mic 1: 15k Ohms
  • Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
  • Input impedance : inputs 2-5: 1k Ohms
  • Line output: RCA

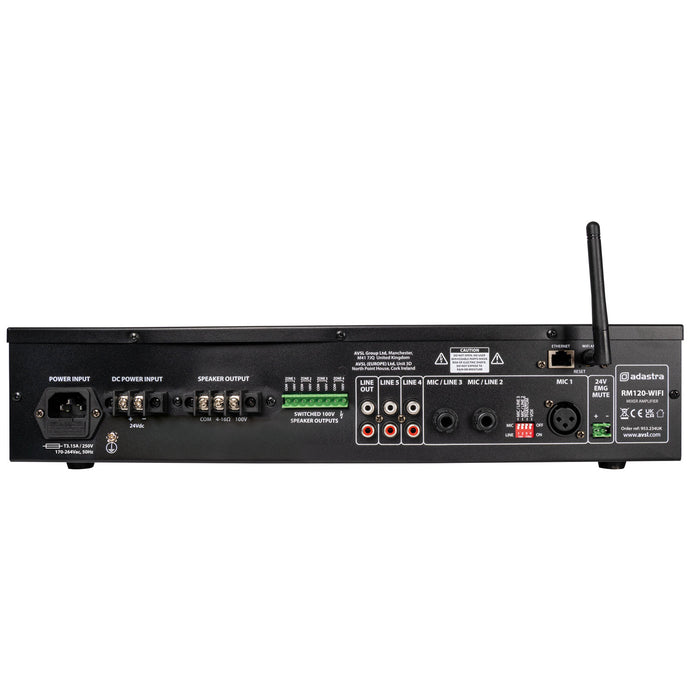

  • Speaker outputs: 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
  • Bluetooth version: 5.0
  • Network connection: RJ45 (LAN) or 2.4GHz WiFi (802.11 b/g/n)
  • Remote control: via WiiM Home app for iOS or Android

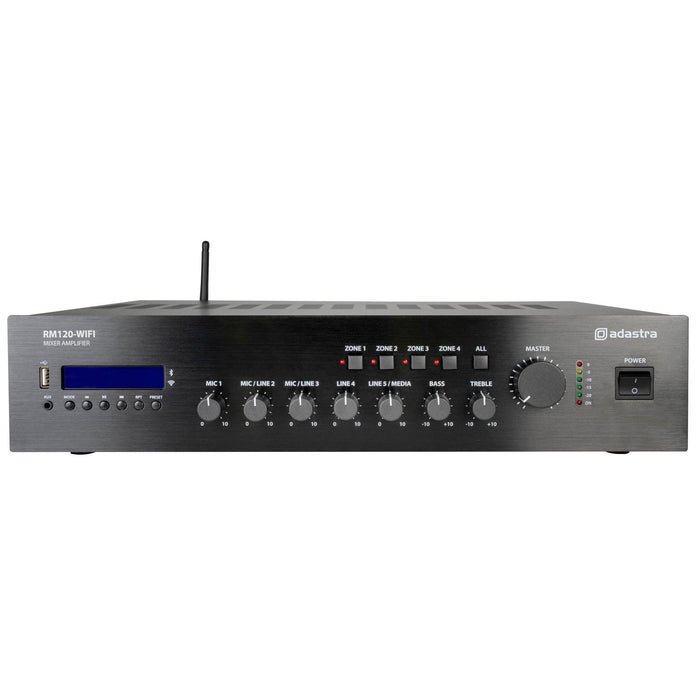

  • Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
  • Equaliser : bass: 100Hz ±10dB
  • Equaliser : treble: 10kHz ±10dB
  • Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
  • Phantom power: +20V (mic 1 XLR, switchable)
  • Audio source: Network audio, USB player, Bluetooth receiver
  • Emergency control: 24V contacts - mute all except Mic.1 when triggered
  • THD: <1.0%
  • Dimensions: 433 x 320 x 88mm
}
