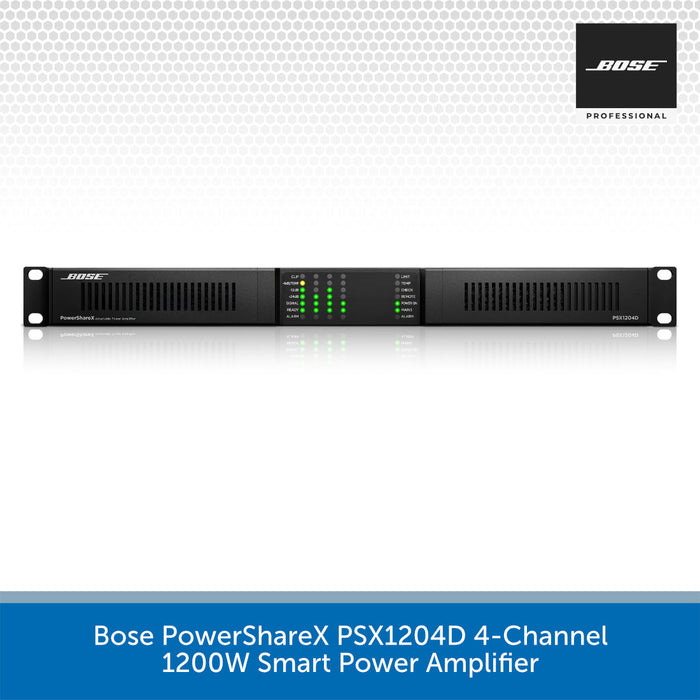

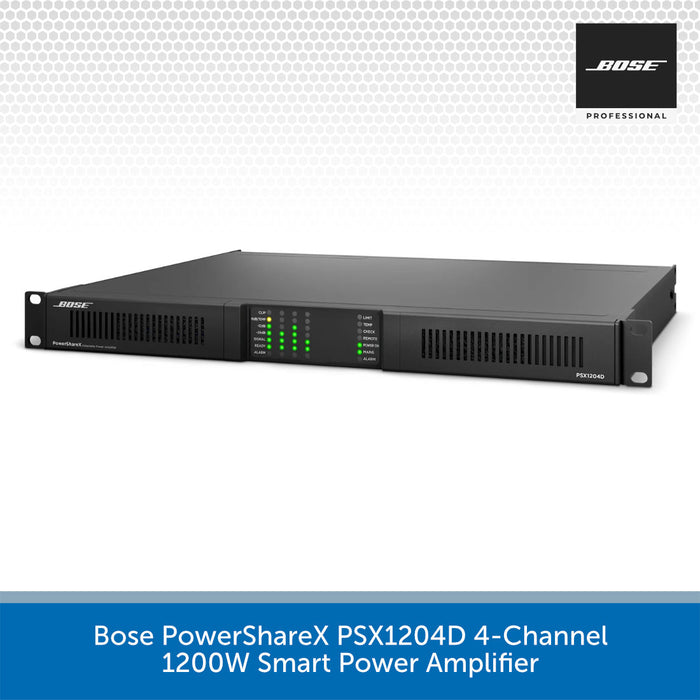

Bose PowerShareX PSX1204D 4-Channel 1200W Smart Power Amplifier

Name: Bose PowerShareX PSX1204D 4-Channel 1200W Smart Power Amplifier
Brand: Bose Professional
SKU: BOSEPSX1204D
Price: 2065.0 GBP
Availability: InStock

by Bose Professional

SKU BOSEPSX1204D

Save 1%

£2,079.00 (inc. VAT)

£2,079.00 (inc. VAT) - £2,079.00 (inc. VAT)

£2,079.00 (inc. VAT)

£2,065.00 (inc. VAT)

£2,065.00 (inc. VAT) - £2,065.00 (inc. VAT)

£2,065.00 (inc. VAT)

DETAILS

The Bose PowerShareX PSX1204D is a 4-channel 1200W smart amplifier built for professional installed sound systems, delivering intelligent power-sharing, onboard DSP and built-in Dante in a rack-friendly 1RU chassis.

The Bose PowerShareX PSX1204D represents a significant step forward in professional amplifier design, combining intelligent power management, advanced DSP and seamless ecosystem integration into a single, compact 1RU unit. Designed for professional AV installers and system designers, the PSX1204D simplifies every stage of a project — from initial design and configuration through to installation, operation and ongoing monitoring — so you can deliver outstanding results and move on to the next job.

Discover the Bose PowerShareX Range In More Detail...

At the core of the PSX1204D is Bose's innovative power-sharing technology, developed in partnership with Powersoft. Rather than locking each channel to a fixed power allocation, the amplifier dynamically distributes its 1200W across all four outputs — either evenly or asymmetrically — depending on the demands of the system at any given moment. This intelligent approach can reduce the need for a higher-powered amplifier model, potentially delivering real cost savings on larger projects without compromising on performance.

Output flexibility is another key strength. The PSX1204D is capable of handling both low-impedance loads (2, 4 and 8Ω) and high-impedance 70V and 100V loudspeaker lines, making it equally at home in a traditional installed audio system or a distributed 100V line setup. Four analogue inputs provide standard line-level connections, while built-in Dante networking supports up to four digital input channels directly from a Dante network — with no additional network card required.

Onboard DSP gives installers instant access to Bose Professional certified loudspeaker presets via ControlSpace Designer software, ensuring optimal performance and loudspeaker protection straight out of the box. The full suite of processing tools includes parametric EQ, crossover filtering, delay, limiting and matrix mixing, all managed from a single intuitive interface alongside the broader Bose Professional ecosystem. Real-time network monitoring provides live system performance data, minimising downtime and reducing unnecessary service calls.

The PSX1204D is EN 54-16 certified, making it a compliant choice for voice alarm and public address systems. Its compact 1RU rack design measures just 358mm deep, eliminating the need for oversized rack enclosures, while Powersoft-proven reliability ensures the system performs day in, day out across the most demanding commercial environments.

Bose PowerShareX PSX1204D Key Features:

Intelligent Power-Sharing Technology: Dynamically allocates 1200W evenly or asymmetrically across four outputs without bridging channels or losing channel count, potentially reducing amplifier model requirements and costs.
Flexible Output Compatibility: Handles both low-impedance (2, 4, 8Ω) and high-impedance (70V, 100V) loudspeaker loads from a single amplifier.
Built-In Dante Networking: Supports up to 4 digital input channels from a Dante network with no additional network card required.
Onboard DSP with Bose Professional Presets: Certified loudspeaker presets and full ControlSpace Designer integration for optimised performance, protection and system-wide visibility.
EN 54-16 Certified: Compliant for use in voice alarm and PAVA systems alongside other compliant system components.
Proven Powersoft Reliability: Built on Powersoft amplifier technology for dependable, consistent day-to-day performance and reduced service calls.
4 Analogue Inputs: Balanced line-level inputs via a single 6-pin Euroblock connector.
Real-Time Network Monitoring: Live system performance data to minimise downtime and unnecessary on-site visits.
GPIO Connections: Remote level control, on/off switching and alarm triggers for system integration.
Compact 1RU Rack Design: Only 358mm deep, fitting neatly into standard rack enclosures without the need for oversized cabinets.
PowerShare Design Tool: Downloadable simulation tool allowing system designers to model power-sharing scenarios and identify potential cost savings before installation.

SPECS & DOWNLOADS

Download the PDF data sheet here

Bose PowerShareX PSX1204D Specifications:

Amplification

Number of Channels: 4
Power Class: Class D
Rated Power, Symmetrical: 400W per channel at 2Ω / 300W per channel at 4Ω, 8Ω, 70V, 100V
Rated Power, Asymmetrical: 1100W at 2Ω / 1100W at 4Ω (70V mode) / 1100W at 8Ω (100V mode)
Maximum Peak Power, Symmetrical: 800W at 2Ω / 600W at 4Ω, 8Ω, 70V, 100V
Maximum Peak Power, Asymmetrical: 2200W at 2Ω, 4Ω, 8Ω, 70V, 100V
Frequency Response: 20Hz – 20kHz (±1.0 dB) at 1W / 8Ω
THD+N: < 0.1% (< 0.05% typical)
SNR: > 104dB (A-weighted)
Channel Separation: -70dB typical at 1kHz
Gain (Low-Impedance): 26dB, 29dB, 32dB, 35dB (selectable)

Audio Inputs — Analogue

Input Channels: 4 balanced line
Connector: 1 x 6-pin Euroblock
Input Impedance: 20kΩ
Maximum Input Level: 20dBu

Audio Inputs/Outputs — Digital

Dante Input Channels: 4
Connector: 1 x RJ-45

Audio Outputs — Analogue

Output Channels: 4
Connector: 1 x 8-pin Euroblock (7.62mm)

DSP

Internal Precision: 32-bit floating-point
A/D & D/A Converters: 48kHz / 24-bit
Audio Latency: 2.5ms fixed-latency
Input EQ: 8-band parametric EQ (±15dB), notch, shelving, high-pass, low-pass
Loudspeaker EQ: 9-band parametric EQ (±15dB), notch, shelving
Crossover Types: Butterworth, Bessel or Linkwitz-Riley, up to 48dB/octave
Delay: 2s input + 100ms output
Limiters: Peak voltage, RMS voltage, clip

Connectivity

Network Interface: RJ-45 (Ethernet / Dante)
GPIO: 1 x 12-pin Euroblock (3 pins per channel)
Software: ControlSpace Designer 5.12 or later (Windows)

Electrical

Mains Voltage: 100–240VAC (±10%), 50/60Hz
Mains Connector: IEC C20
AC Power Consumption: 31.1W idle / 251W maximum at 1/8 power at 4Ω
Protections: High temperature, DC, output short circuit, high frequency, AC mains voltage, inrush current, clip, peak, RMS

Physical

Rack Spaces: 1RU
Dimensions (H x W x D): 45mm x 483mm x 358mm (1.8" x 19.0" x 14.1")
Net Weight: 7.0kg (15.4 lb)
Cooling: Variable-speed fan, front-to-back airflow
Colour: Black

Compliance

Safety: EN 54-16 certified (voice alarm control and indicating equipment)
EMC: EN55103-2 (E2 electromagnetic environment)

}
