AUDAC PMQ600 - WaveDynamics™ 4 x 600W Quad-Channel Power Amplifier 70V/100V/8Ω
DETAILS
The Audac PMQ600 is a powerful 4 x 600W Class-D 70/100V amplifier with WaveDynamics™ DSP, ideal for large-scale multi-zone public address installations.
The Audac PMQ600 is the most powerful model in the PMQ range, delivering 4 x 600W of clean, efficient Class-D amplification for professional 70/100V public address systems. Perfect for large-scale applications such as universities, shopping centres, sports halls, and houses of worship, this amplifier ensures high headroom and consistent audio quality across multiple zones.
Featuring Audac’s WaveDynamics™ DSP technology and a 2.5” LCD display, the PMQ600 makes system setup and tuning intuitive. Users can configure filters (low/high/band-pass), a 7-band parametric EQ with adjustable frequency and Q-factor, delay, and dynamic bass boost. Two-level password or USB-key protection allows secure access for installers and end-users.
The PMQ600 supports preconfigured loudspeaker presets and full system setups that can be uploaded via USB, ensuring optimal performance and reliable speaker protection. Flexible connectivity is provided by XLR and terminal block inputs with link-through, plus 4-pin Euroblock outputs. RS232 control allows easy integration with automation systems, and an optional Dante™/AES67 expansion card enables high-quality networked audio streaming.
With TouchLink™ compatibility for creating virtual audio zones and support for remote control through the AUDAC Touch™ app (when paired with ANI44XT), the PMQ600 offers exceptional flexibility and control for complex installations.
AUDAC PMQ600 Key Features:
- Quad-Channel 70/100V Power: 4 x 600W for large multi-zone installations.
- WaveDynamics™ DSP: Advanced loudspeaker management with EQ, filters, delay, and presets.

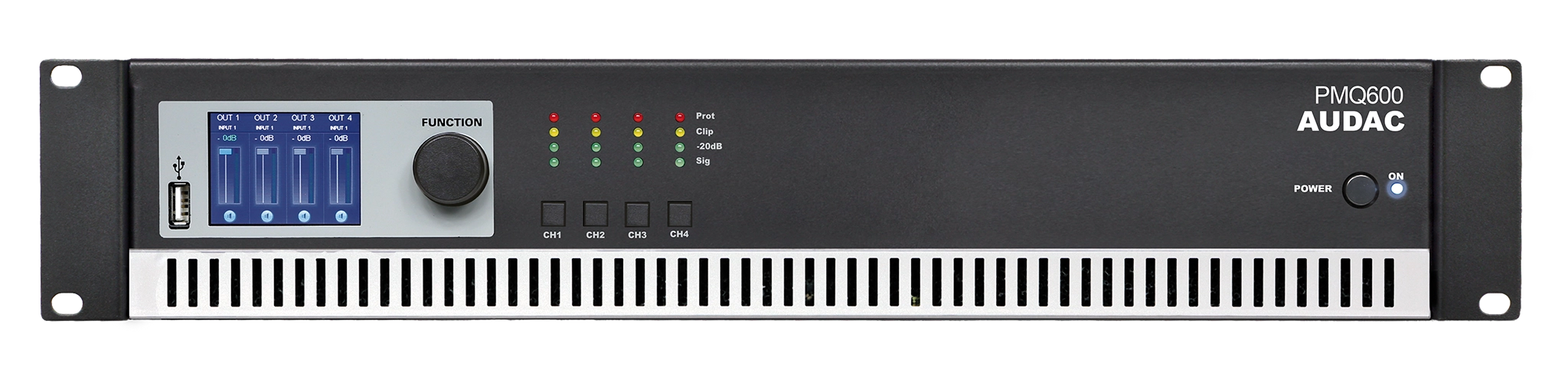

- User-Friendly Interface: 2.5” LCD screen with intuitive Scroll-Push™ navigation.

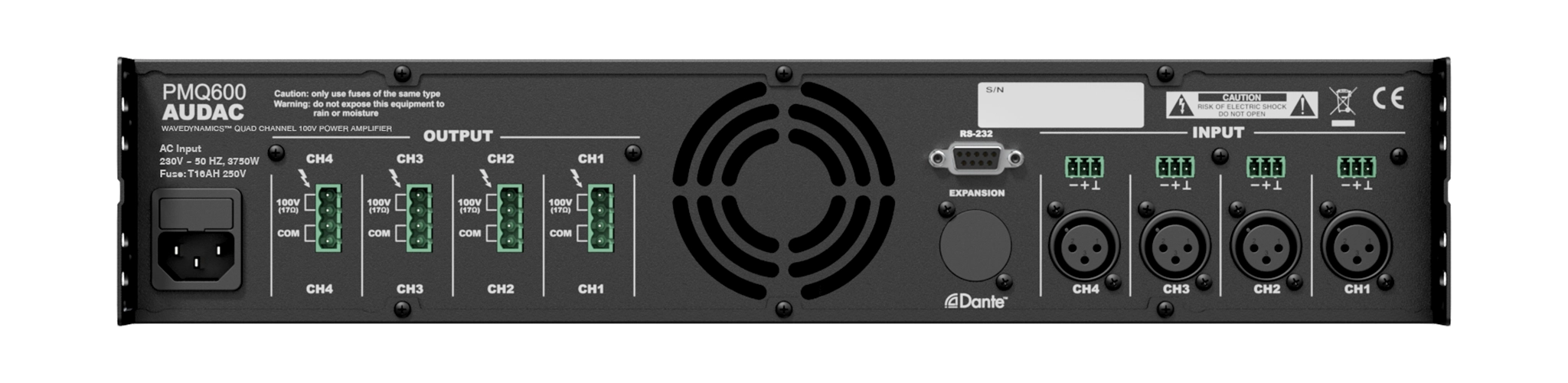

- Flexible Connectivity: XLR & Euroblock inputs with link-through, 4-pin Euroblock outputs.
- Optional Dante™/AES67 Expansion: Low-latency network audio streaming over Ethernet.
- TouchLink™ Compatible: Create virtual zones with multiple connected devices.
- AUDAC Touch™ Ready: Remote system control via mobile, tablet, or PC (with ANI44XT installed).
- Secure Access Control: User & Administrator level protection via password or USB key.
-
Comprehensive Protection: Overload, short circuit, overheating, and signal limiting safeguards.
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
AUDAC PMQ600 Specifications:
- Amplifier Type: Class-D
- Channels: 4
- Output Power (AES): 4 x 600W @ 8Ω, 4 x 600W @ 100V
- Frequency Response: 50 Hz – 20 kHz (±3 dB)
- Signal-to-Noise Ratio: <95 dB
- THD+N: <0.05% (1/2 Rated Power)
- Crosstalk: >70 dB (@ 1 kHz)
- Minimum Load Impedance: 8Ω
- Input Sensitivity: -30 dB ~ +5 dB
- Input Impedance: 10 kΩ balanced
- Input Connector: XLR & 3-pin Euro Terminal Block (3.81 mm)
- Output Connector: 4-pin Euro Terminal Block (Pitch 5.08 mm)
- Common Mode Rejection: 70 dB
- Damping Factor: >200
- Protection: DC, short circuit, overheating, overload, signal limiting
- Access Levels: User & Administrator via password / USB key
- Cooling: Temperature-controlled fan
- Operating Temperature: 0° ~ 40° @ 95% humidity
- Power Supply: Switching mode AC 100-120V / 220-240V, 50/60Hz
- Dimensions: 482 x 88 x 420 mm (W x H x D)
- Weight: 8.6 kg
- Mounting: 19” rack, 2 HE
- Construction: Steel
-
Colour: Black
