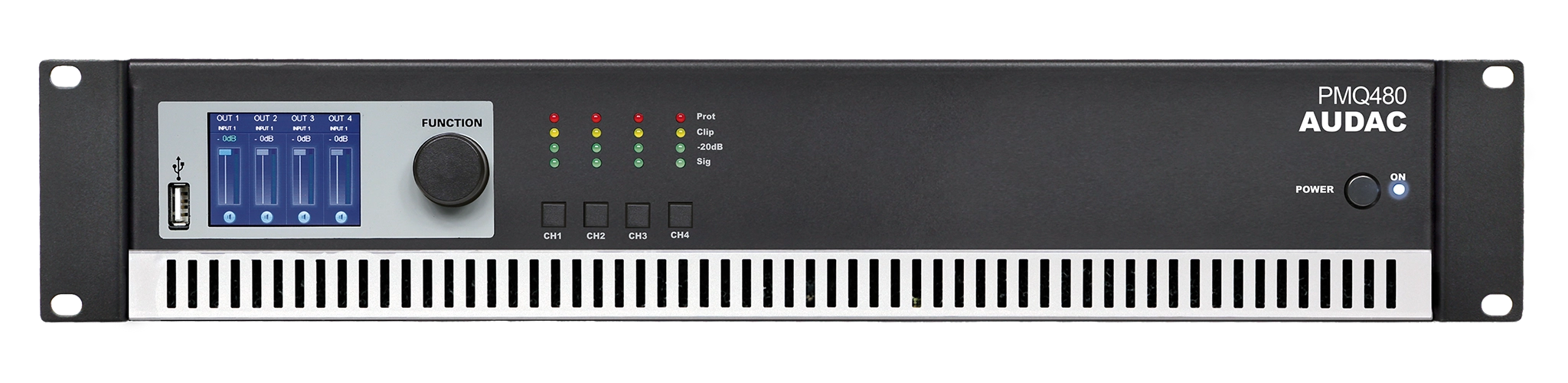

AUDAC PMQ480 - WaveDynamics™ 4 x 480W Quad-Channel Power Amplifier 70V/100V/8Ω
DETAILS
The Audac PMQ480 is a quad-channel Class-D 70/100V amplifier delivering 4 x 480W with WaveDynamics™ DSP, ideal for powerful multi-zone public address systems.
The Audac PMQ480 is part of the PMQ series of professional 70/100V quad-channel power amplifiers, designed for premium audio distribution in public address and multi-zone sound systems. With 4 x 480W of Class-D power, the PMQ480 is perfect for driving multiple loudspeakers across large spaces such as schools, offices, conference centres, hotels, and houses of worship.
Equipped with Audac’s WaveDynamics™ DSP technology and a clear 2.5” LCD interface, the PMQ480 offers easy system setup and tuning. Advanced features include low/high/band-pass filters, a 7-band parametric EQ, delay, and dynamic bass boost for precise sound optimisation. Two access levels (User and Administrator) with password or USB-key protection provide secure configuration, making it suitable for both professional installers and end-users.
The amplifier supports preloaded loudspeaker presets and full configuration uploads via USB, ensuring optimal acoustic performance and reliable loudspeaker protection. Connectivity is flexible, with XLR and terminal block inputs with link-through and 4-pin Euroblock outputs. RS232 control enables seamless integration with control systems, and an optional Dante™/AES67 interface allows for low-latency, high-quality network audio streaming.
The PMQ480 is also TouchLink™ compatible, allowing you to create virtual audio zones when combined with other compatible devices, and supports remote control through the AUDAC Touch™ app when the ANI44XT expansion card is installed. The Scroll-Push™ control interface ensures intuitive navigation and setup directly from the front panel.
AUDAC PMQ480 Key Features:
- Quad-Channel 70/100V Power: 4 x 480W output for demanding multi-zone installations.
- WaveDynamics™ DSP: Advanced loudspeaker management with EQ, filters, delay, and presets.
- User-Friendly Interface: 2.5” LCD screen with Scroll-Push™ navigation.

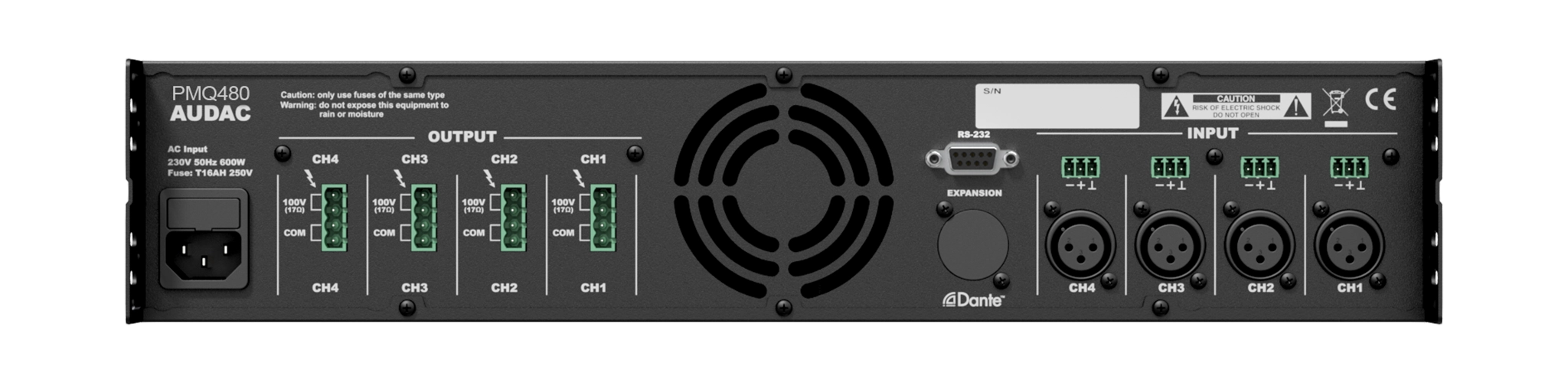

- Flexible Connectivity: XLR & Euroblock inputs with link-through, 4-pin Euroblock outputs.
- Optional Dante™/AES67 Expansion: High-quality networked audio streaming over Ethernet.
- TouchLink™ Compatible: Link multiple devices to create virtual audio zones.
- AUDAC Touch™ Ready: Remote system control via mobile, tablet, or PC (with ANI44XT installed).
- Secure System Access: User & Administrator levels with password or USB-key protection.
- Comprehensive Protection: Short circuit, overload, overheating, and signal limiting.
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
AUDAC PMQ480 Specifications:
- Amplifier Type: Class-D
- Channels: 4
- Output Power (AES): 4 x 480W @ 8Ω, 4 x 480W @ 100V
- Frequency Response: 50 Hz – 20 kHz (±3 dB)
- Signal-to-Noise Ratio: >95 dB
- THD+N: <0.05% (1/2 Rated Power)
- Crosstalk: >70 dB (@ 1 kHz)
- Input Sensitivity: -30 dB ~ +5 dB
- Input Impedance: 10 kΩ balanced
- Input Connector: XLR & 3-pin Euro Terminal Block (3.81 mm)
- Output Connector: 4-pin Euro Terminal Block (Pitch 5.08 mm)
- Common Mode Rejection: 70 dB
- Damping Factor: >200
- Protection: DC, short circuit, overheating, overload, signal limiting
- Access Levels: User & Administrator via password / USB-key
- Cooling: Temperature-controlled fan
- Operating Temperature: 0° ~ 40° @ 95% humidity
- Power Supply: Switching mode AC 100-120V / 220-240V, 50/60Hz
- Dimensions: 482 x 88 x 420 mm (W x H x D)
- Weight: 8.5 kg
- Mounting: 19” rack, 2 HE
- Construction: Steel
-
Colour: Black
