Q-Audio QMEDIAMIX52 5-Channel Mic/Line Audio Mixer With Bluetooth, MP3, FM Radio
The Q-Audio QMEDIAMIX52 is a versatile 5-channel mixer designed for media installations in environments like bars, restaurants, schools, and more.
Equipped with Bluetooth, FM radio, and MP3 playback capabilities, it delivers high-quality sound control and convenience in one compact unit. Its combination of stereo and microphone inputs, along with its advanced media features, make it an ideal solution for venues that require flexible audio control and multimedia integration.
Comprehensive Input & Output Options
The QMEDIAMIX52 features two stereo inputs with signal-present LEDs, rear-panel gain controls, and front-panel level adjustments, allowing for quick and easy audio control. A 3.5mm front-panel stereo jack input provides convenient connectivity for tablets and phones.

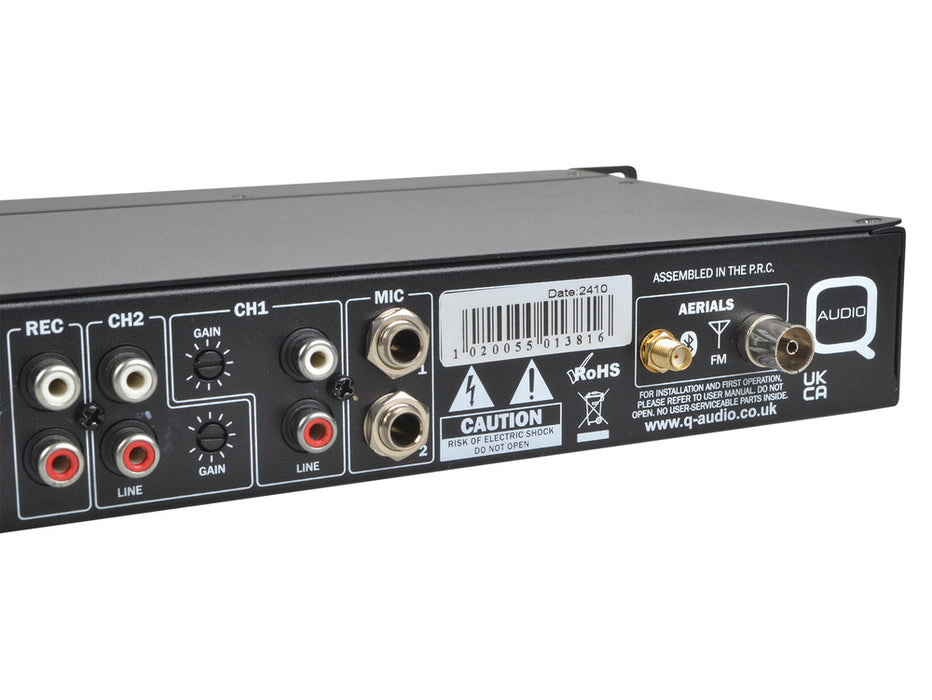

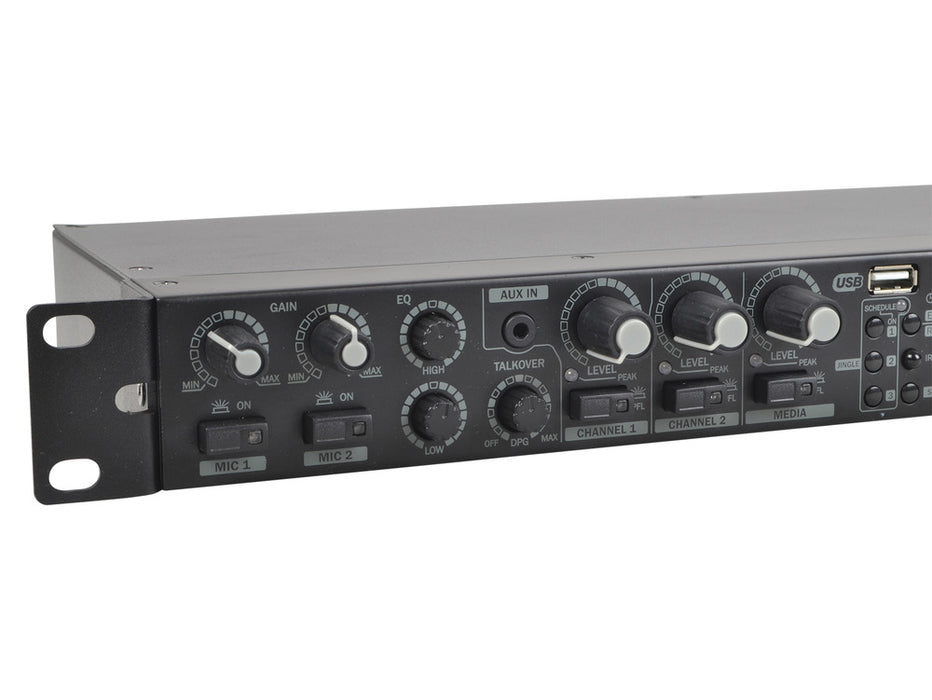

For microphone integration, the mixer includes two rear-side 1/4" TRS jack connectors, with a voice-specific 2-band EQ and "on air" switches. An adjustable auto talk-over function automatically reduces music levels when the microphone is in use, ensuring smooth transitions during announcements.
Advanced Media Player & Tuner
This mixer includes a built-in media player with support for USB thumb drives up to 16GB (containing up to 2000 songs), providing easy file and folder access, MP3 tag readout on the large LCD display, and multiple play sequences (regular, random, elapsed, and remaining time modes).
The FM tuner with RDS station display makes it simple to tune into your preferred radio stations. Additionally, the built-in jingle player can store and play up to three jingles, which can be scheduled or triggered manually, perfect for use in advertising and announcements.
Flexible Audio Control

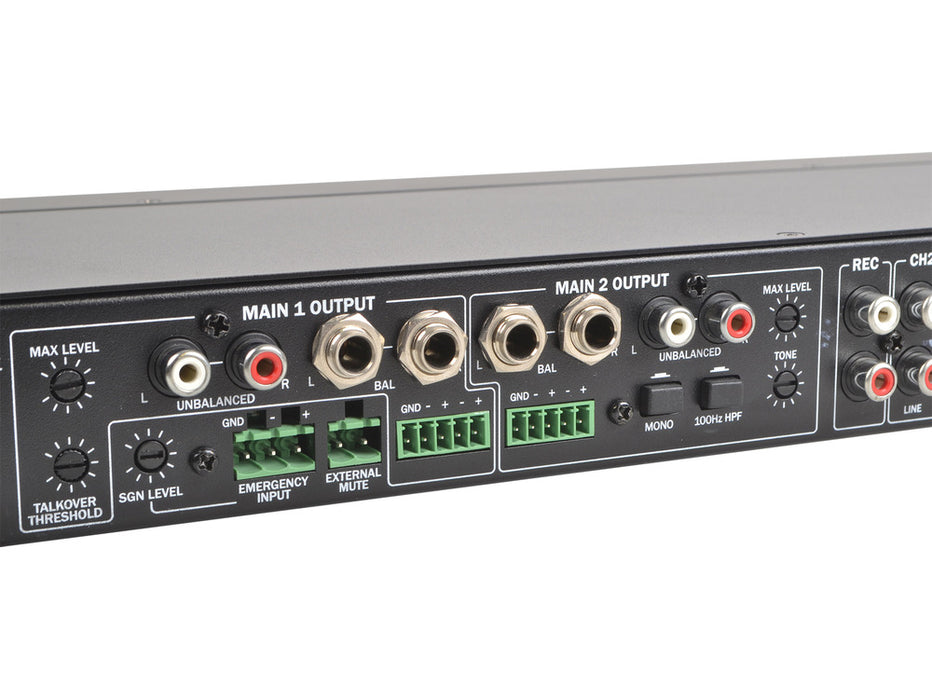

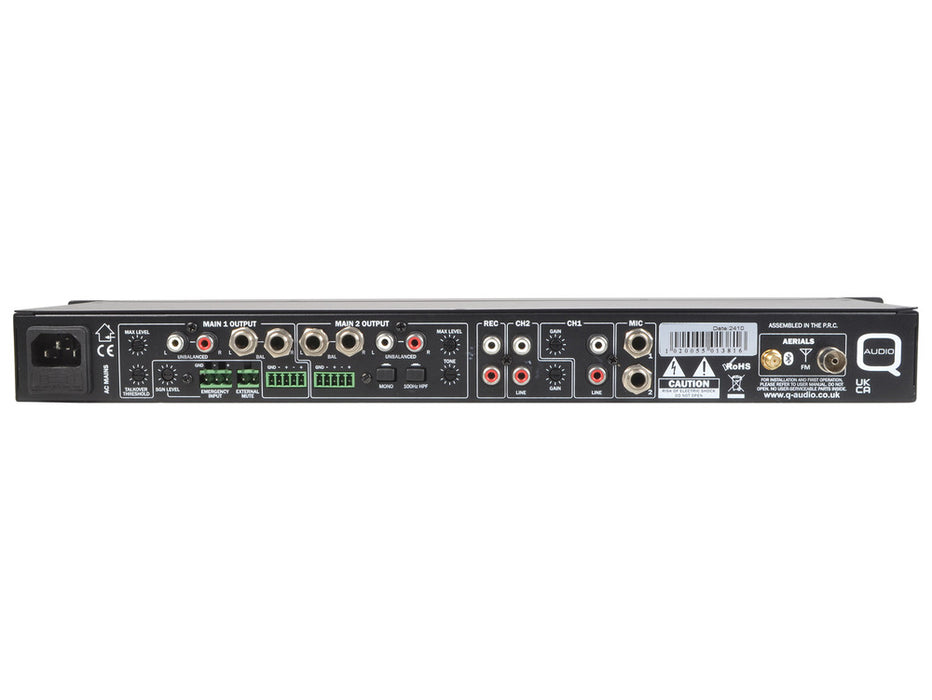

The mixer offers two stereo main outputs with independent level controls, with Main Output 1 featuring a 2-band front-side EQ and a 10-LED level meter. Main Output 2 provides rear-side tone control, a mono switch, and a 100Hz high-pass filter, ensuring optimal sound in various settings. Outputs include balanced TRS and Phoenix connectors, as well as unbalanced RCA connectors for flexible integration with other audio equipment.
Additional Features
The QMEDIAMIX52 includes an emergency input to override the master output for emergency signal playback, as well as an output mute contact for external muting control. A headphone section with volume control and a 6.3mm stereo jack ensures easy monitoring, while the low-noise Hi-Fi power supply provides clean and reliable operation.
With its sturdy 1U 19" metal case and detachable rack ears, the QMEDIAMIX52 is built for durability and ease of installation, making it an ideal choice for professional audio environments.
Q-Audio QMEDIAMIX52 Key Features:
- 5-channel mixer with Bluetooth, MP3, and FM radio support
- Two stereo inputs with signal-present LEDs, rear gain controls, and front-level adjustments
- Front-panel 3.5mm stereo TRS input for tablets and phones
- Two microphone inputs with rear 1/4" TRS connectors and voice-specific 2-band EQ
- Adjustable auto talk-over for seamless music reduction during microphone use
- Built-in media player with USB support (up to 16GB, 2000 songs) and FM tuner with RDS station display
- Jingle player for announcements and advertising
- Two stereo main outputs with independent level controls
- 2-band EQ for main output 1, rear gain controls for output 2
- Balanced ¼" jack and Phoenix connectors, plus unbalanced RCA connectors for output
- Emergency input for automatic shutdown and emergency signal playback
- Headphone section with volume control and 6.3mm stereo jack
- Rear tone control for main output 2, mono switch, and 100Hz high-pass filter
- RCA record output
- Sturdy 1U 19" metal case with detachable rack ears
