LD Systems DEEP2 4950 4-Channel Power Amplifier 4 x 810W

SKU LDDP4950
Save 7% Save 7%
Original price £669.00 (inc. VAT)
Original price £669.00 (inc. VAT) - Original price £669.00 (inc. VAT)
Original price £669.00 (inc. VAT)
Current price £621.00 (inc. VAT)
£621.00 (inc. VAT) - £621.00 (inc. VAT)
Current price £621.00 (inc. VAT)
DETAILS

The LD Systems DEEP2 4950 is a 4-channel Class-H power amplifier delivering 4 x 810W at 4Ω and 2 x 1600W bridged, built for reliable, high-performance professional use across sub-bass and full-range multifunctional speaker applications.

The LD Systems DEEP2 4950 sits at the top of the acclaimed DEEP2 amplifier series as the most powerful four-channel model in the range, delivering 4 x 810W at 4Ω from a single 2U chassis. Developed with professional reliability and long-term durability firmly at the forefront, the DEEP2 4950 has been constructed exclusively with high-end, carefully selected components to ensure it performs consistently and dependably in the most demanding continuous operation environments. Whether deployed by bands, rental companies or professional installation users, the DEEP2 4950 represents an outstanding price-to-performance ratio in four-channel professional amplification.

Discover the LD Systems DEEP2 4950 In More Detail...

Dynamic, Clear Sound

The DEEP2 4950 produces the same dynamic, exceptionally clear sound signature that has earned the DEEP2 series its strong professional reputation — performing equally well across sub-bass applications and full-range multifunctional speaker systems. Its Class-H output circuitry with toroidal core transformer power supply delivers rated power of 4 x 810W at 4Ω and 4 x 490W at 8Ω, with 2 x 1600W available in bridged mono mode at 8Ω. With a damping factor exceeding 400, an SNR of 105dB and THD of less than 0.1%, the 4950 delivers the clean, controlled and authoritative sound that professional applications demand.

Comprehensive Protection & Control

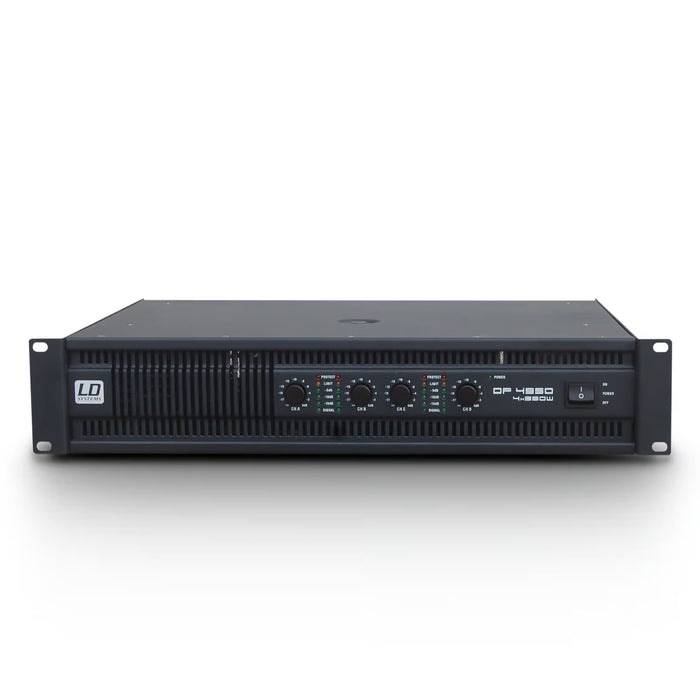

Reliability is built into every aspect of the DEEP2 4950. A full suite of protection circuits — covering short circuit, DC protection and thermal overload — ensures both the amplifier and connected speakers are safeguarded at all times. Four individual channel volume controls, a ground lift switch, mains on/off switch and bridge/stereo mode selector provide straightforward, intuitive front panel operation, whilst LED indicators give clear real-time monitoring of signal, limit, power and protection circuit status. Automatic, highly efficient cooling maintains optimal operating temperatures throughout extended high-power use.

Robust, Road-Ready Construction

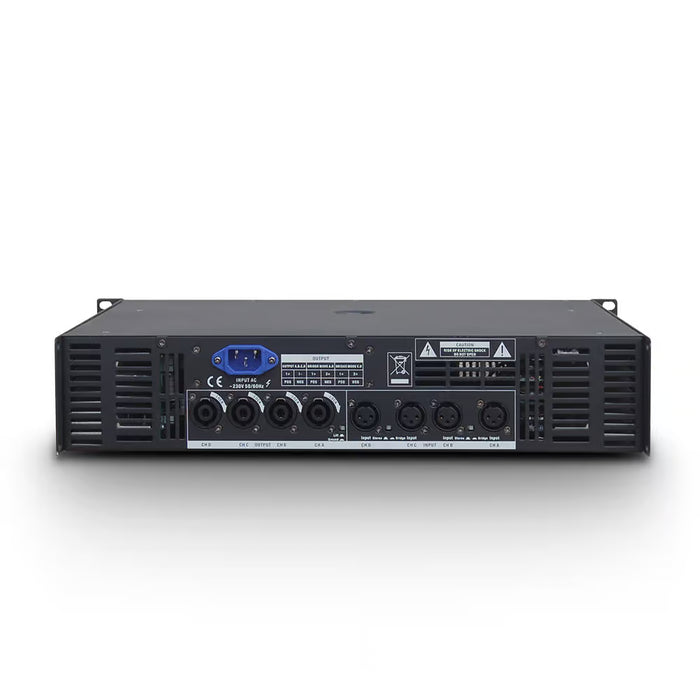

Despite its impressive four-channel power output, the DEEP2 4950 remains a practical and manageable unit at 19.6kg, housed in a robust steel plate chassis with a compact, user-friendly design. Speakon-compatible speaker outputs on the rear panel provide secure, professional-grade connections, completing a package that is equally at home on a touring rig or in a fixed installation rack.

LD Systems DEEP2 4950 Key Features:

  • 4 x 810W at 4Ω / 2 x 1600W Bridged: The most powerful four-channel model in the DEEP2 range, delivering serious headroom for professional sub-bass and full-range applications.
  • Class-H Output Circuitry: Efficient, high-performance amplifier topology with toroidal core transformer power supply.
  • Four Independent Channels: Individual volume controls per channel for precise, flexible level management across complex speaker systems.
  • Bridge/Stereo Mode Selector: Front panel switching between stereo and bridged mono operation for flexible system configuration.
  • Comprehensive Protection Circuits: Short circuit, DC protection and thermal overload protection for amplifier and speaker safety.
  • Ground Lift Switch: Eliminates unwanted ground loop noise for a clean, interference-free signal.
  • Automatic Cooling System: Highly efficient temperature-controlled cooling for reliable sustained operation at high power levels.
  • Speakon-Compatible Outputs: Four Speakon-compatible speaker outputs for secure, professional-grade connections.
  • Robust Steel Plate Housing: Durable, road-ready construction built for the rigours of professional use.
  • Excellent Price-to-Performance Ratio: A powerful, reliable and cost-effective choice for bands, rental companies and professional users.
SPECS & DOWNLOADS

LD Systems DEEP2 4950 Specifications:

  • Output Power at 4Ω (stereo): 4 x 810W
  • Output Power at 8Ω (stereo): 4 x 490W
  • Output Power at 8Ω (bridged): 2 x 1600W
  • Output Circuitry: Class H
  • Frequency Response: 20Hz – 20kHz
  • THD: < 0.1%
  • SNR: 105dB
  • Damping Factor: > 400 (20Hz–500Hz at 8Ω)
  • Crosstalk: > 70dB
  • Gain: 38dB
  • Input Sensitivity: 0.775V
  • Protection Circuits: Short circuit, DC protection, thermal overload
  • Controls: 4 x volume, ground lift, mains switch, bridge/stereo mode selector
  • Indicators: Signal, limit, power, protect
  • Speaker Outputs: 4 (Speakon compatible)
  • Cooling: Automatic, highly efficient
  • Power Supply: Toroidal core transformer, 230V AC / 50–60Hz
  • Weight: 19.6kg
}
